Position lights

A position light makes the outline of your vehicle visible – white at the front, red at the rear and amber on the side. The FOR9T Scale series covers all three positions: the FOR9T Scale Front Position Light for the front, the FOR9T Scale Rear Position Light for the rear and the FOR9T Scale Side Marker for the side of the vehicle. Switched off, the dark lens looks discreet; switched on, it reveals flowing light lines and a hexagonal pattern. All Scale lights measure 116.5 x 54 x 22 mm, have a hole spacing of 90 mm and a 5 m cable – handy on large vehicles and bodies too. Housing and lens are made of corrosion-free polycarbonate, and the IP67 rating keeps out dust and water. With 10–40 V DC, they suit many vehicles. The Scale lights are E-approved to ECE R148 and EMC-tested to ECE R10.

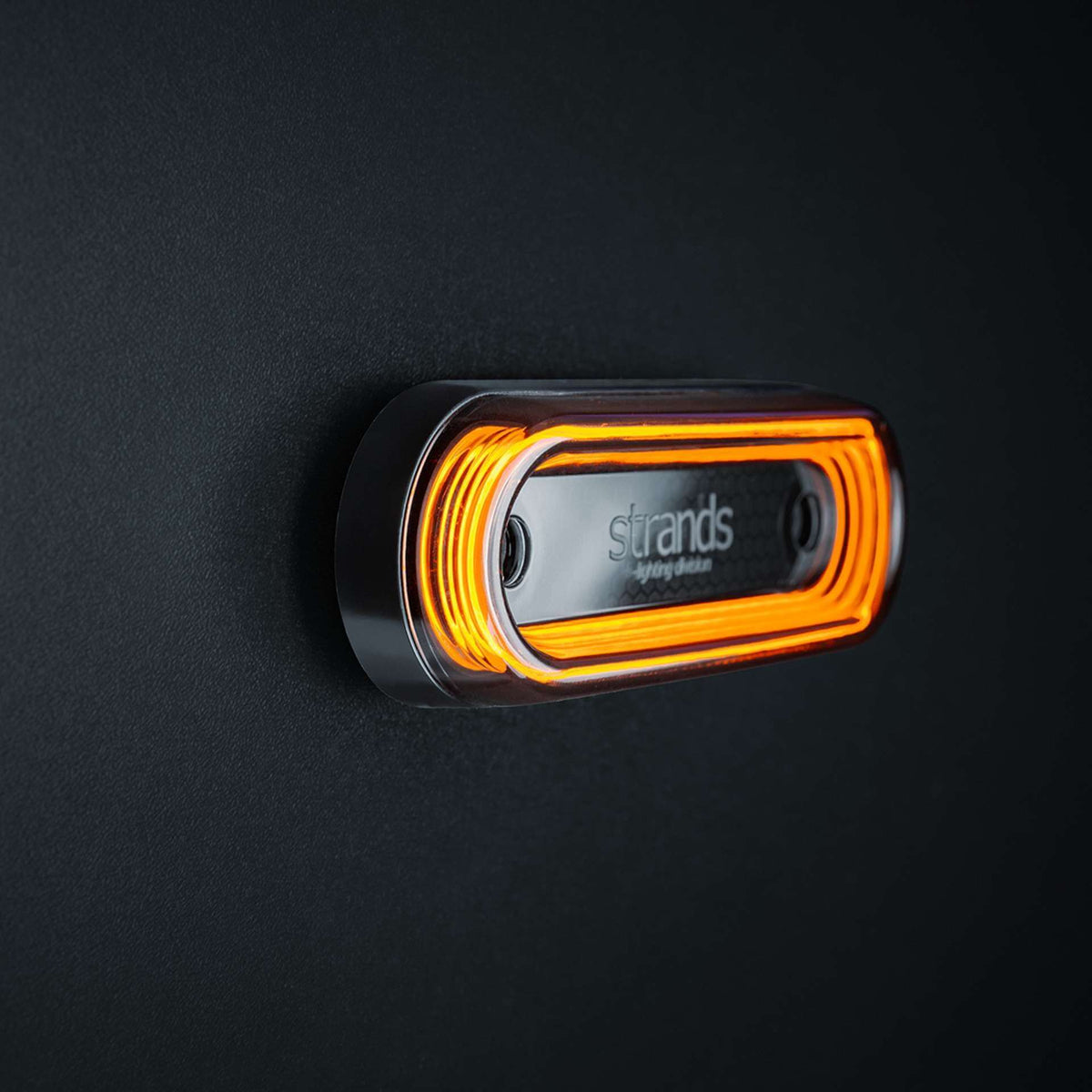

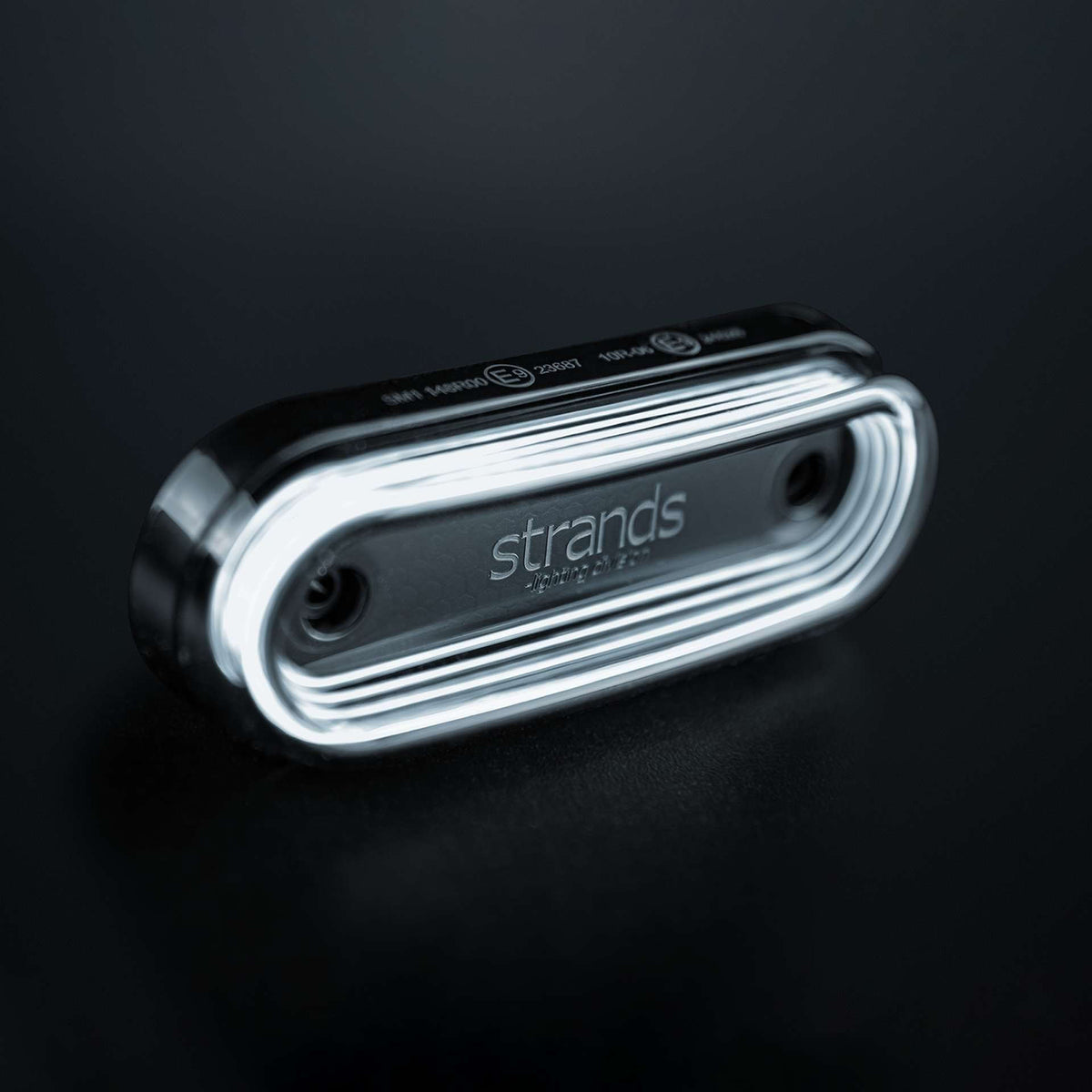

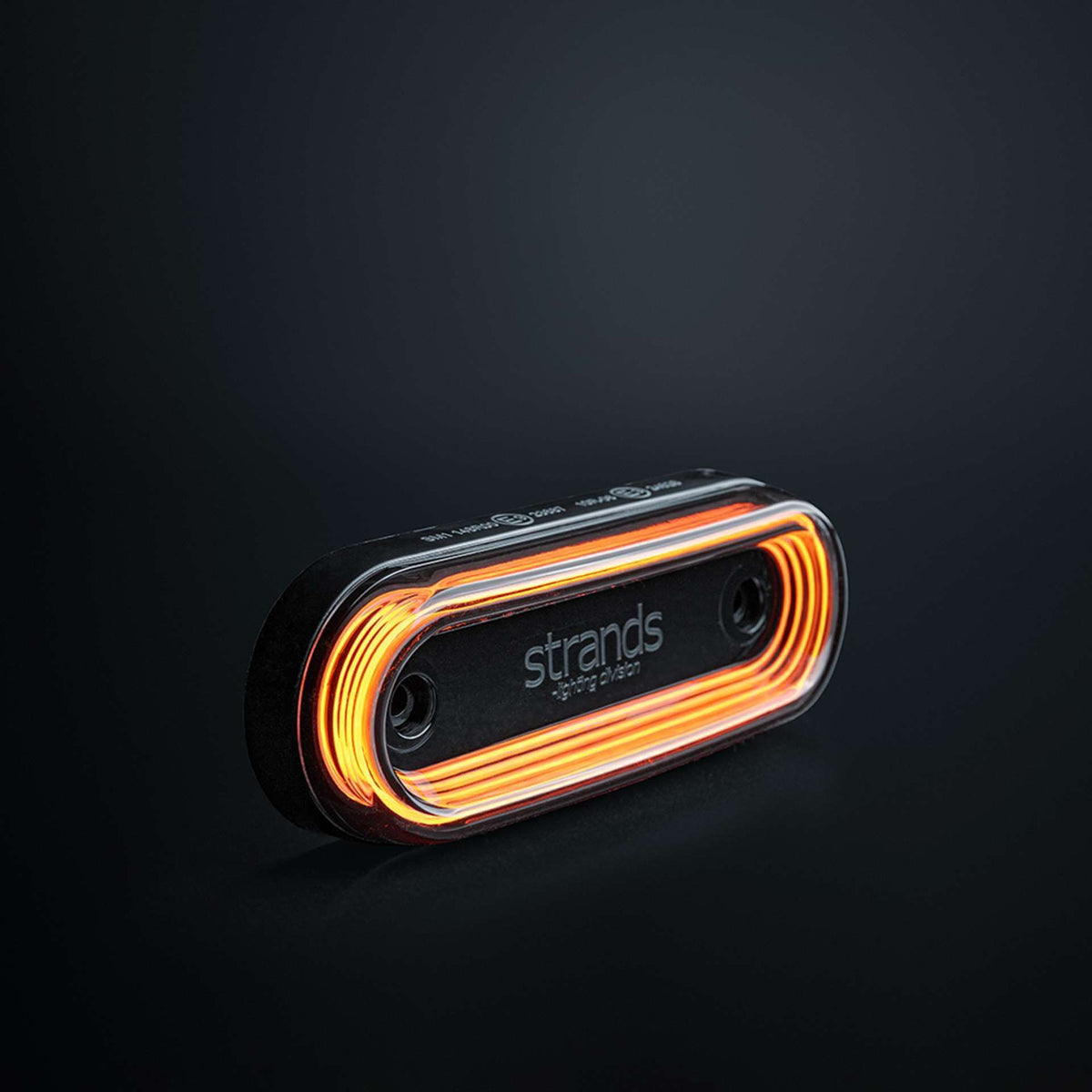

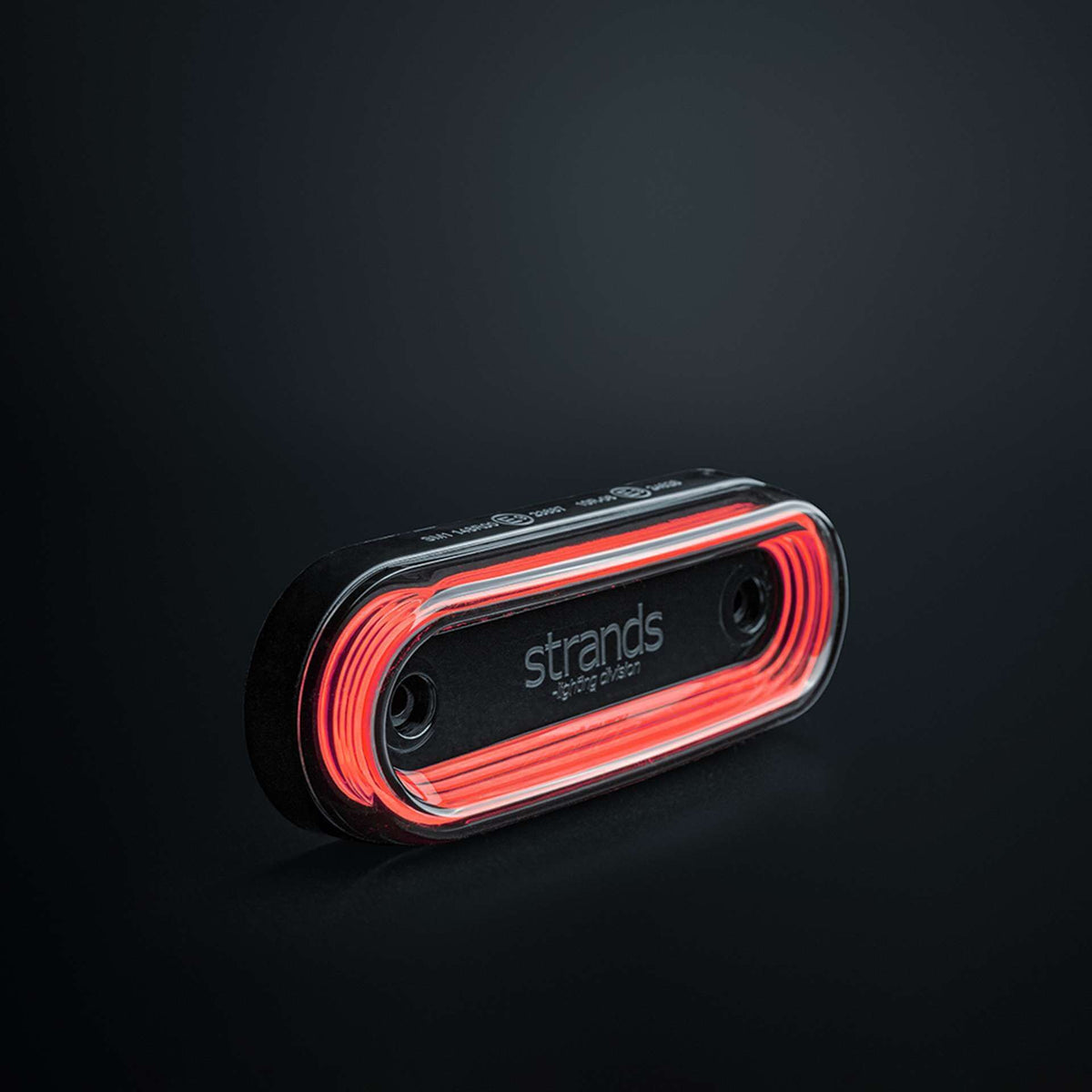

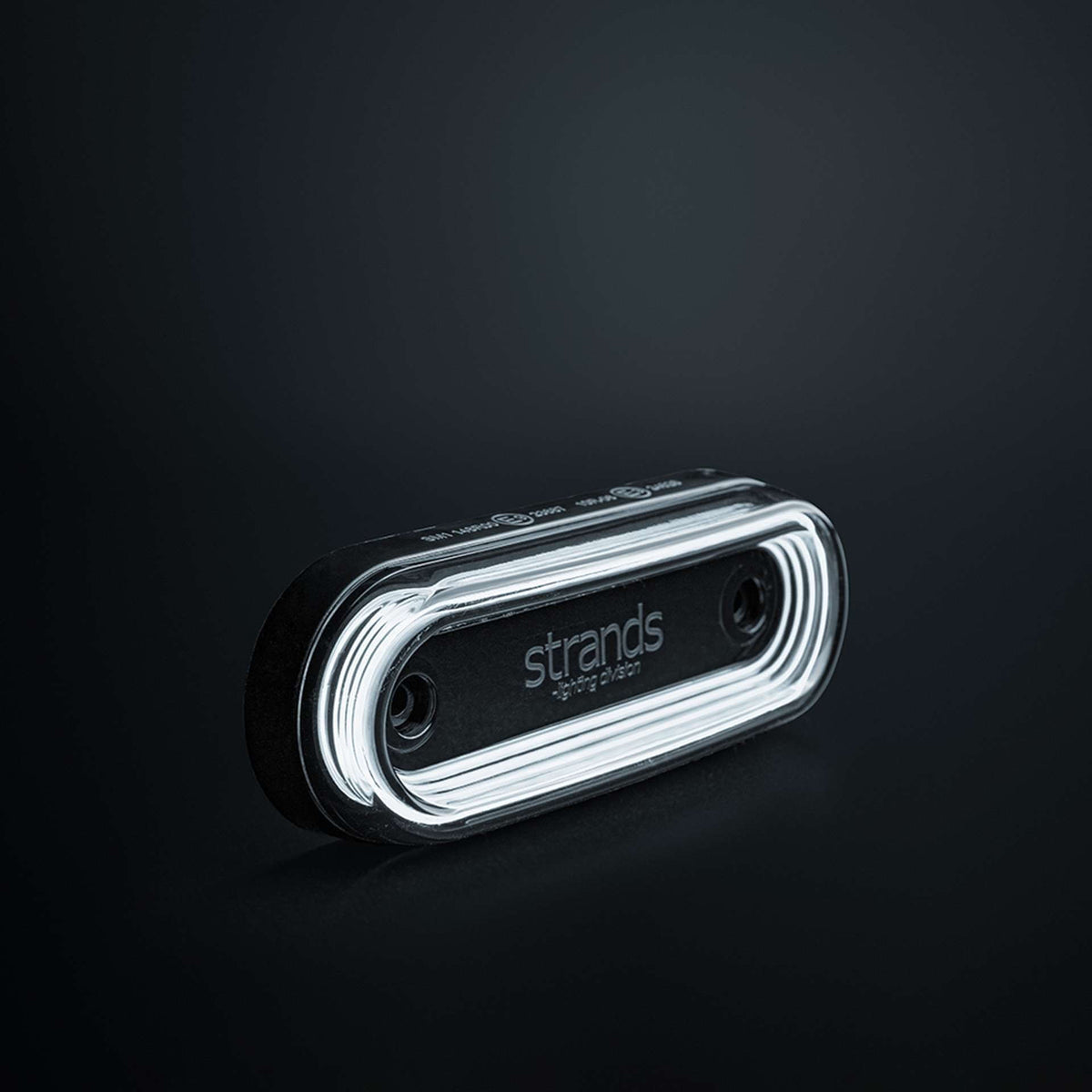

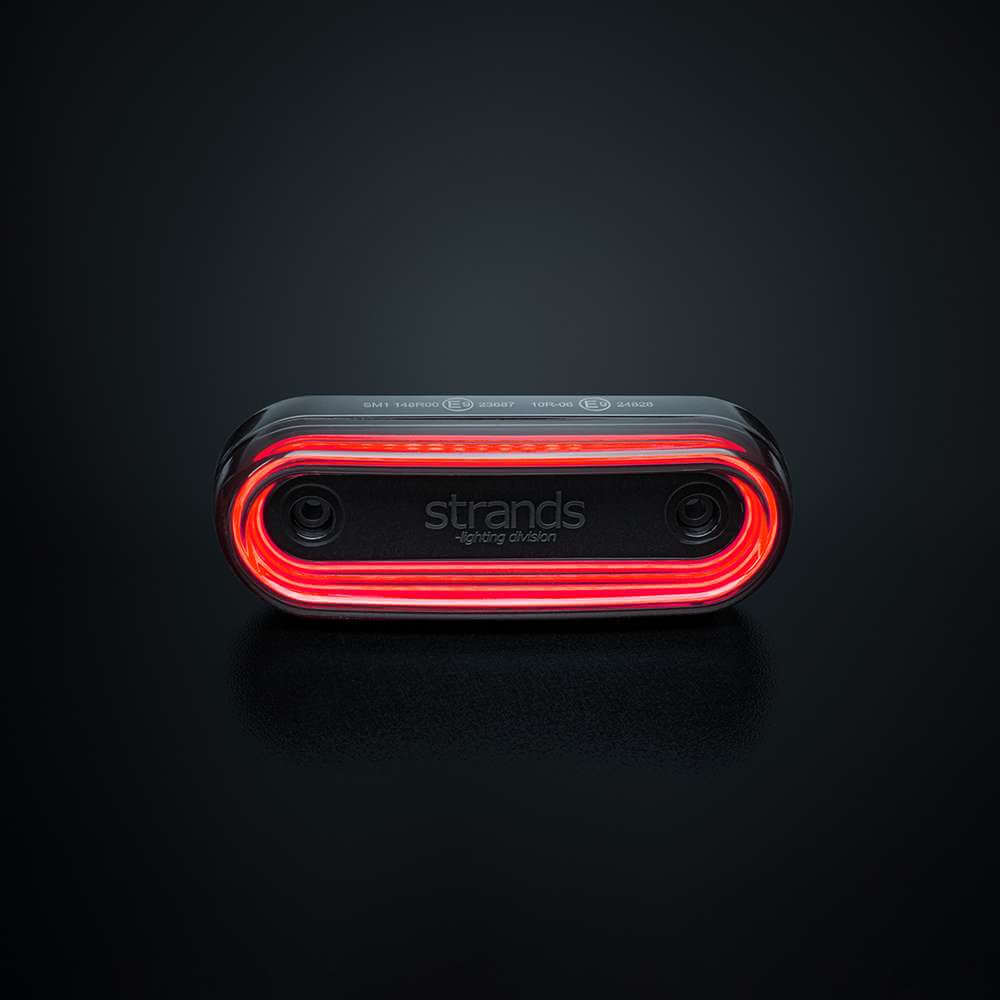

The oval FOR9T Gravity series is a little more compact. The FOR9T Gravity Front Position Light shines white, the FOR9T Gravity Side Marker amber and the FOR9T Gravity Rear Position Light red. Drawing just 2.5 to 4.5 W at 10–40 V DC, they are economical, and the 2.5 m cable makes routing easy. The ABS housing with PMMA lens is protected to IP67 and mounts with 75 mm hole spacing or the optional hanging bracket. For light around the vehicle, there is the Unity Rock Light: in white it delivers 780 lumens and up to 17 metres of reach, and it is also available in amber, red and yellow – with three rubber mounts for flat and curved surfaces or as a 30° scene light, protected to IP69K. For the complete rear, take a look at our LED reversing lights and tail lights, and for safety on the job, our LED warning lights.
